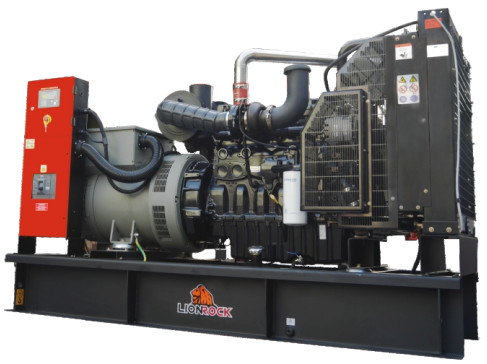

Protective Grille For Fan And Rotating Parts AC Perkins 60Hz Diesel Generating Sets
LionRock Generator sets are suitable for commercial, industrial, telecom, Data Centre and infrastructure application.
Standard features
- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity
Standard and Quality
- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001
- CE certificate for generator set
Rating definition as per ISO8528
- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.
| Power Ratings at 0.8 power factor |
| Voltage (V) | Standby | Prime | Maximum current (Amp) |
| kVA | kW | kVA | kW |
| 220/127 | 400 | 320 | 365 | 292 | 1050 |
| 440/254 | 400 | 320 | 365 | 292 | 525 |
| 480/277 | 400 | 320 | 365 | 292 | 481 |
| Fuel Consumption |
| Load (%) | | 100 | 75 | 50 |
| (L/h) | 81.0 | 74.0 | 56.6 | 39.5 |
| Dimensions | Weight | Fuel Tank |
| Length (L) | | Height (H) | Dry | Baseframe |
| mm | mm | mm | kg | litres |
| 3500 | 1150 | 2000 | 2650 | 880 |
Technical data
Electrical measurement
- Voltage (P-P, P-N)
- Current
- Frequency
- Power factor
Energy Meter
- kW
- kWh
- kVA
Mechanical measurement
- Water temperature
- Oil Pressure
- Engine speed
- Running hours
- Number of start
- Battery voltage
Protection
Mechanical
- Overspeed
- High coolant temperature
- Low oil pressure
- Start up failure lock out
- Emergency Stop
- Over and under frequency
- Over and under voltage
- Overload
- Overcurrent
- Power factor
- Current unbalance
Communication
- USB (Programming)
Control
- Auto/Manual
- Start/stop button
- Alarm/fault acknowledge
- Menu button
- Display navigation buttons
Features
- Automatic mains failure
- Fuel tank content in %
- Oil temperature gauge
- Modbus SNMP
- Modbus TCP/IP Ethernet
- Extended input/output modules
- RS485 Modbus
Alternative control modules
- Wide range of control module options including:
ComAp
Deepsea
Woodward
Smartgen etc.
- Multiple generators parallel as well as parallel with mains power
Dimensions and Weights
| Length (L): mm | 4760 |
| Width (W): mm | 1620 |
| Height (H): mm | 2230 |
| Weight: kg | 4435 |
| Fuel Tank Capacity: litres | 880 |
Sound Pressure Levels
| 75% Load | |
| Prime: dBA@1m | 87 |
| dBA@7m | 77 |
| dBA@15m | 71 |
Stainless steel locks and handles on doors
- Black zinc die cast hinges on doors proven to withstand extreme weather conditions
- Zinc plated standard fastener with stainless steel option
- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating
Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery
- Emergency stop buttons mounted on enclosure exterior surface
- All moving parts including Cooling fan, charging alternator, belt are fully guarded
Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance
- Lube oil and water drains hosed to baseframe side to exterior
- Removable end panels allow access to radiator, exhaust silencer and alternator rear
- Exhaust silencer inside enclosure
Easy Transportable
- Lifting points on both side of baseframe
- Anchor and drag points at baseframe ends
